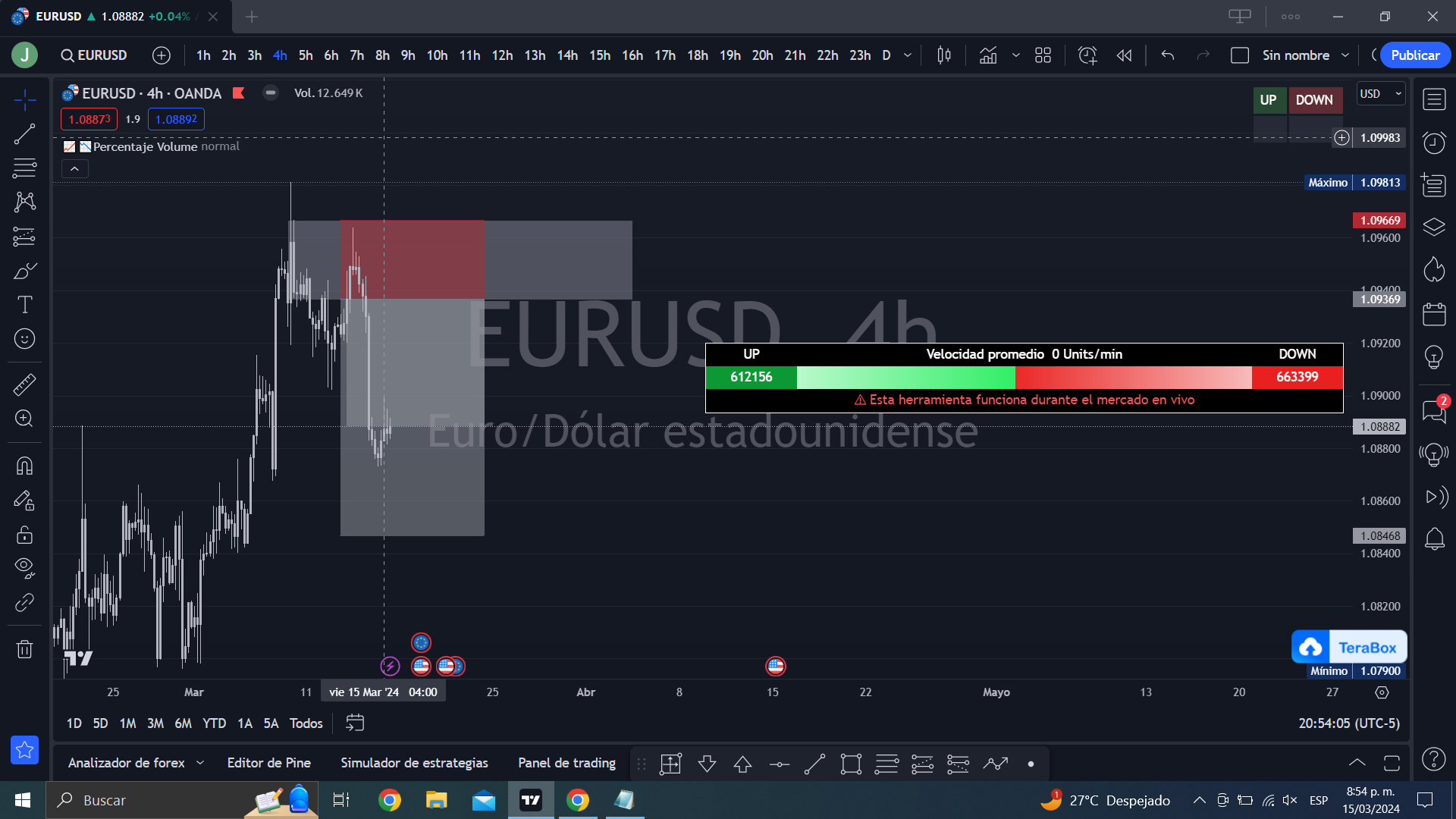

Les solicito amablemente ayuda soy nuevo en esto y estoy aprendiendo quiero saber como cambiar o modificar un script creado y cambiarlo a uno mas pequeño o bueno trasladar valores y el script anterior que no se visualize quedo anteto muchas gracias anexo el codigo
//@version=5
indicator("
Percentaje Volume", overlay = true)// |++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++|
// | INPUT |
// |++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++|
// +++++++++++++++ Table Settings
var G1 = "Widget Settings"
// Timezone
timzon = input.string("GMT-5", "Timezone ", inline = "0", group = G1, display = display.none)
// Table Colors
tBgCol = input.color(#000000, "", group = G1, inline = "0", display = display.none)
tTxCol = input.color(#ffffff, "", group = G1, inline = "0", display = display.none)
// Location
tablePos = input.string("Bottom Right", "Widget Location|Size",
["Top Right" , "Middle Right" , "Bottom Right" ,
"Top Center", "Middle Center" , "Bottom Center",
"Top Left" , "Middle Left" , "Bottom Left" ], inline = "1", group = G1, display = display.none)
// Size
tableSiz = input.string("Tiny", "",
["Auto", "Huge", "Large", "Normal", "Small", "Tiny"], inline = "1", group = G1, display = display.none)
// Cell Colors
upXCC = input.color(#0c9934, "Up | Down Volume ", group = G1, inline = "4")
dnXCC = input.color(#ea1f1f, "", group = G1, inline = "4")
clrMd = input.string("Gradient", " ", ["Solid", "Gradient"], group = G1, inline = "4", display = display.none)
// Space
space = input.bool(false, "Make The Volume Scale Bar Spaced", group = G1)
// +++++++++++++++ Technical Settings
var G2 = "Technical Settings"
// Timeframe
tFrm = input.timeframe("1S", "Lower Timeframe", group = G2, display = display.none,
tooltip = "Note:\nIf the selected timeframe is invalid (higher than chart)," +
"the indicator will automatically switch to 1 second.")
// Length
nRow = input.int(100, "Length", 1, 100, group = G2, display = display.none) + 2
// Volume OR Price Volume
iVol = input.string("Volume", "Size Type", ["Volume", "Price Volume"], group = G2, display = display.none)
// Flash
cFlsh = input.bool(true, "Enable a 3-Second Flash When the Latest Lot")
vFlsh = input.float(8, " Volume Is Greater than Average", 1, 100, inline = "5", display = display.none,
tooltip = "When lot volume of selected timeframe is\n\n2 means 'Double Average'." +
"\n3 means 'Triple Average'.\n8 means '8 Times Average'.\n...etc")
// |++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++|
// | CALCULATION |
// |++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++|
// +++++++++++++++ Get Number of Strings Function
strVol (x) => str.tostring(x, format.volume)
strPvol(x) => str.tostring(x, "$##.00")
strTik (x) => str.tostring(x, format.mintick)
// +++++++++++++++ Declare Matrix
var mtx = matrix.new<float>(0, 5, na) // Lower Timeframe
// +++++++++++++++ Import Data
var timfram = timeframe.in_seconds(tFrm) > timeframe.in_seconds(timeframe.period) ? "1S" : tFrm
[cls, tim, vol, sBr] = request.security_lower_tf(syminfo.tickerid, timfram,
[close, time, iVol == "Volume" ? volume : hlc3 * volume, session.isfirstbar ? 1 : 0], true, ignore_invalid_timeframe = true)
var chg = 0
if cls.size() > 0 and cls.size() == tim.size() and cls.size() == vol.size()
sIdx = cls.size() - nRow < 0 ? 0 : cls.size() - nRow
eIdx = cls.size()
tim0 = tim.slice(sIdx, eIdx)
vol0 = vol.slice(sIdx, eIdx)
cls0 = cls.slice(sIdx, eIdx)
sBr0 = sBr.slice(sIdx, eIdx)
for i = 0 to cls0.size() - 1
cTim = tim0.get(i)
cVol = vol0.get(i)
cCls = cls0.get(i)
csBr = sBr0.get(i)
if mtx.rows() > 0
// Price Change
pCls = mtx.get(0, 2)
if pCls != cCls
chg := (cCls - pCls)/pCls > 0 ? 1 : -1
// Add new rows with values to Matrix
mtx.add_row(0, array.from(cTim, chg, cCls, cVol, csBr))
// Remove over rows from a Matrix
while mtx.rows() > nRow
mtx.remove_row(mtx.rows()-1)
// |++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++|
// | TABLE |
// |++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++|
// +++++++++++++++ Get Tbale Location & Size
locNsze(x) =>
y = str.split(str.lower(x), " ")
out = ""
for i = 0 to y.size() - 1
out := out + y.get(i)
if i != y.size() - 1
out := out + "_"
out
// +++++++++++++++ Get Volume Format
volForm(x) =>
iVol == "Volume" ? x > 999999 ? strVol(x) : str.tostring(x) : strPvol(x)
// +++++++++++++++ Get Timeframe Format
tfTxt(x) =>
out = x
if not str.contains(x, "S") and not str.contains(x, "M") and
not str.contains(x, "W") and not str.contains(x, "D")
if str.tonumber(x) % 60 == 0
out := str.tostring(str.tonumber(x)/60)+"H"
else
out := x + "min"
else
out := x
if (str.length(out) == 2 and str.contains(out, "1")) or str.contains(out, "1min")
out := str.split(out, "1").get(0)
else
out := out
// +++++++++++++++ Get Speed Info
speed(x1, x2) =>
var unit = if iVol == "Price Volume"
"/"
else
switch syminfo.type
"stock" => " Shares/"
"dr" => " Shares/"
"fund" => " Shares/"
"crypto" => " Coins/"
=> " Units/"
varip spMin = 0.0
varip spMax = 0.0
varip spTim = timenow
speed = barstate.isrealtime ? x1/x2 : 0
spMin := spMin == 0 ? speed : math.min(speed, spMin)
spMax := spMax == 0 ? speed : math.max(speed, spMax)
[volForm(math.round(speed, 6)) + unit + tfTxt(timfram),
volForm(math.round(spMin, 6)) + unit + tfTxt(timfram),
volForm(math.round(spMax, 6)) + unit + tfTxt(timfram),
str.format_time(spTim, "HH:mm:ss yyyy-MM-dd", timzon)]
// +++++++++++++++ Get Dynamic Scale Bar Color
colorLab(col, z) =>
R = color.r(col), G = color.g(col), B = color.b(col)
// RGB TO HSL
r1 = R / 255, g1 = G / 255, b1 = B / 255
cMax = math.max(r1, g1, b1)
cMin = math.min(r1, g1, b1)
dlta = cMax - cMin
h = 0.0
if dlta != 0
if cMax == r1
h := ((g1 - b1) / dlta) % 6
else if cMax == g1
h := (b1 - r1) / dlta + 2
else if cMax == b1
h := (r1 - g1) / dlta + 4
h := h < 0 ? (h * 60) + 360 : h * 60
l = (cMax + cMin) / 2
s = dlta != 0 ? dlta / (1 - math.abs(2 * l - 1)) : 0.0
// * Update Lightness *
l := (85 - 60.0/100.0 * z)/100
l := l > 1 ? 1 : l < -1 ? -1 : l
// HSL TO RGB
c = (1 - math.abs(2 * l - 1)) * s
x = c * (1 - math.abs((h / 60) % 2 - 1))
m = l - c / 2
r2 = 0.0, g2 = 0.0, b2 = 0.0
if h >= 0 and h < 60
r2 := c, g2 := x, b2 := 0
else if h >= 60 and h < 120
r2 := x, g2 := c, b2 := 0
else if h >= 120 and h < 180
r2 := 0, g2 := c, b2 := x
else if h >= 180 and h < 240
r2 := 0, g2 := x, b2 := c
else if h >= 240 and h < 300
r2 := x, g2 := 0, b2 := c
else if h >= 300 and h < 360
r2 := c, g2 := 0, b2 := x
color.rgb((r2 + m) * 255, (g2 + m) * 255, (b2 + m) * 255)
sColor(col)=>
var out = array.new<color>(100, col)
if clrMd == "Gradient"
for i = 0 to out.size() - 1
array.set(out, i, colorLab(col, i))
out
// +++++++++++++++ Create Table
var table tbl = na
if mtx.rows() > 2
tbl := table.new(locNsze(tablePos), 102, 4, tBgCol,
tTxCol, 1, color.new(tBgCol, 100), space ? 1 : 0)
// +++++++++++++++ Get Cell Function
cell(col, row, txt, w, h, color, txtCol, tip) =>
tbl.cell(col, row, txt, w, h, txtCol, bgcolor = color, text_size = locNsze(tableSiz))
if tip != ""
tbl.cell_set_tooltip(col, row, tip)
// +++++++++++++++ Draw Table
if barstate.islast and not na(tbl)
table.clear(tbl, 0, 0, 101, 3)
upVol = .0
dnVol = .0
for i = 0 to mtx.rows() - 3
if mtx.get(i, 1) > 0
upVol += mtx.get(i, 3)
else
dnVol += mtx.get(i, 3)
span = (timenow - mtx.get(mtx.rows()-3, 0))/(1000 * timeframe.in_seconds(timfram))
smVol = upVol + dnVol
avVol = smVol/(mtx.rows() - 2)
// Up & Down Volumes Columns
cell(0, 3, "00000.000000", 0, 0.0001, color(na), color(na), "Total Up Volume")
cell(101, 3, "00000.000000", 0, 0.0001, color(na), color(na), "Total Down Volume")
///El detalle esta aqui
cell(0, 1, volForm(upVol), 0, 0, upXCC, tTxCol, "Total Up Volume")
cell(101, 1, volForm(dnVol), 0, 0, dnXCC, tTxCol, "Total Down Volume")
///// fin del detalle
cell( 0, 0, "UP", 0, 0, color(na), tTxCol, "Total Up Volume")
cell(101, 0, "DOWN", 0, 0, color(na), tTxCol, "Total Down Volume")
// Volume Dynamic Scale Bar
upStng = math.round(upVol/smVol * 100)
dnStng = 100 - upStng
var upCol = sColor(upXCC)
var dnCol = sColor(dnXCC)
for i = 0 to 99
cell(1 + i, 0, "", 0.3, 0, color(na), color(na), "")
cell(1 + i, 2, "", 0.3, 0, color(na), color(na), "")
cell(1 + i, 3, "", 0.3, 0.0001, color(na), color(na), "")
if i < upStng
cell(1 + i, 1, "", 0.3, 0, upCol.get(i), tTxCol, "")
if i < dnStng
cell(100 - i, 1, "", 0.3, 0, dnCol.get(i), tTxCol, "")
// Average Speed
[avgSp, minSp, maxSp, timSp] = speed(smVol, span)
table.merge_cells(tbl, 1, 0, 100, 0)
tbl.cell(1, 0, "Velocidad promedio " + avgSp, 0, 0, tTxCol, text_size = locNsze(tableSiz),
tooltip = "MAX Speed " + maxSp + "\nMIN Speed " + minSp + "\n\n\nsince " + timSp)
// Bottom Info
table.merge_cells(tbl, 1, 2, 100, 2)
if barstate.isrealtime
cell(1, 2, "Total Vol " + str.tostring(smVol) +
" Period = " + str.tostring(nRow-2) + " @ " + tfTxt(timfram),
0, 0, color(na), tTxCol, "")
// Flash
if cFlsh
varip spkTim = 0.0
varip spkDic = 0.0
varip spkVol = 0.0
lstVol = mtx.get(0, 3)
if lstVol >= avVol * vFlsh
dir = mtx.get(0, 1)
spkTim := timenow + 3000
spkDic := dir
spkVol := lstVol
if mtx.col(3).indexof(spkVol) != -1
if spkDic > 0
cell(0, 2, "+" + volForm(spkVol), 0, 0, color(na), tTxCol,
"Recorded - Most Recent at Once\nUp Volume is Graeter Than " + str.tostring(vFlsh) + " Times of Total Average Volume")
if spkDic < 0
cell(101, 2, "+" + volForm(spkVol), 0, 0, color(na), tTxCol,
"Recorded - Most Recent at Once\nDown Volume is Graeter Than " + str.tostring(vFlsh) + " Times of Total Average Volume")
if spkTim > timenow + 2000
tbl.set_bgcolor(spkDic > 0 ? color.new(upXCC, 25) : color.new(dnXCC, 25))
else if spkTim > timenow + 1000
tbl.set_bgcolor(spkDic > 0 ? color.new(upXCC, 50) : color.new(dnXCC, 50))
else if spkTim > timenow
tbl.set_bgcolor(spkDic > 0 ? color.new(upXCC, 75) : color.new(dnXCC, 75))
else
tbl.set_bgcolor(tBgCol)
else
// Message
cell(1, 2, "⚠ Esta herramienta funciona durante el mercado en vivo", 0, 0, color(na), color.red, "")
var G3 = "IndicatorPanel"
size = input.string(size.small, title='Text Size', options=[size.normal, size.small, size.tiny], group='G3')
//BUILD PANEL
var IndicatorPanel = table.new(position.top_right, 2, 2, border_width=2)
if barstate.islast
//title Columns
table.cell(IndicatorPanel, 0, 0, text='UP ', bgcolor = color.new(color.green, 70), text_color = color.white, text_size = size)
table.cell(IndicatorPanel, 1, 0, text='DOWN ' , bgcolor = color.new(color.red, 70), text_color = color.white, text_size = size)
table.cell(IndicatorPanel, 1, 1, tooltip = 'dnVol', bgcolor = color.new(color.black, 50), text_color = color.white, text_size = size)
table.cell(IndicatorPanel, 0, 1, tooltip = 'upVol', bgcolor = color.new(color.black, 50), text_color = color.white, text_size = size)
